SKU: HFC-19

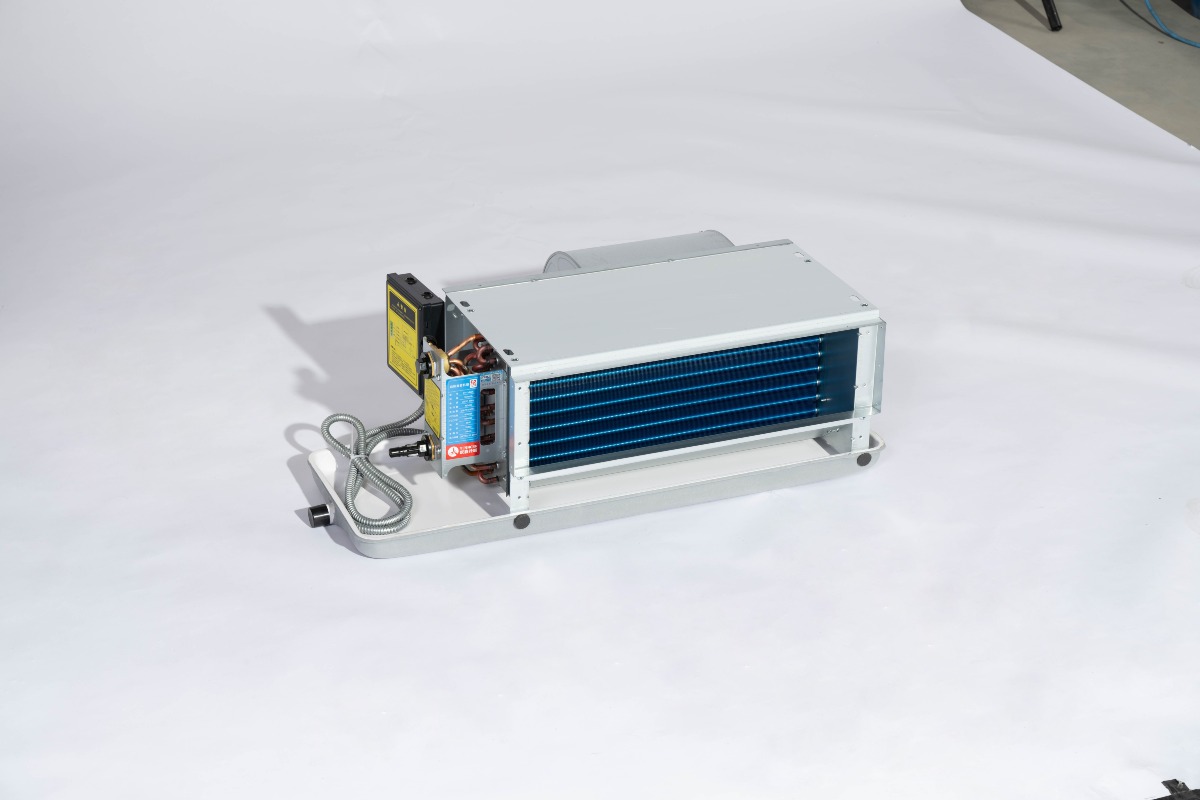

HFC-19 Fan Coil Unit (1.9kW)
1.9kW horizontal concealed fan coil unit. 340 m³/h airflow. 37 dB(A). Supplied with 200mm plenum, thermostat, remote control, and filter. 3-year warranty.
£749.00inc-VAT
£624.17 ex-VAT (20.00% VAT)
Coming soon
Description
What's included
HFC-19 fan coil unit
200mm plenum box
Thermostat
Remote control
Filter
Specifications
| Cooling capacity | 1,920 W |
| Heating capacity | 3,135 W |
| Air volume (H / M / L) | 340 / 260 / 170 m³/h |
| Power input | 44 W |
| Sound level | 37 dB(A) |
| Water flow rate | 319 L/h |
| Water pressure loss | ≤30 kPa |
| Coil rows | 3 |
| Coil working pressure | 1.2 MPa |
| Air outlet (W × H) | 460 × 130 mm |
| Return air box inlet | 460 × 175 mm |
| Power supply | 230V / 50Hz / 1-phase |
| Pipe connection | ¾″ BSP tapered |
| Dimensions (W × L × H) | 740 × 515 × 230 mm |
| Net weight | 14 kg |
Includes
| Component | Qty |
|---|---|
| Load-Compensated Controller | 1 |
| Fan Coil Controller Board | 1 |
No planning permission
Internal installation only. No external units. Ideal for listed buildings.
