SKU: HFC-37

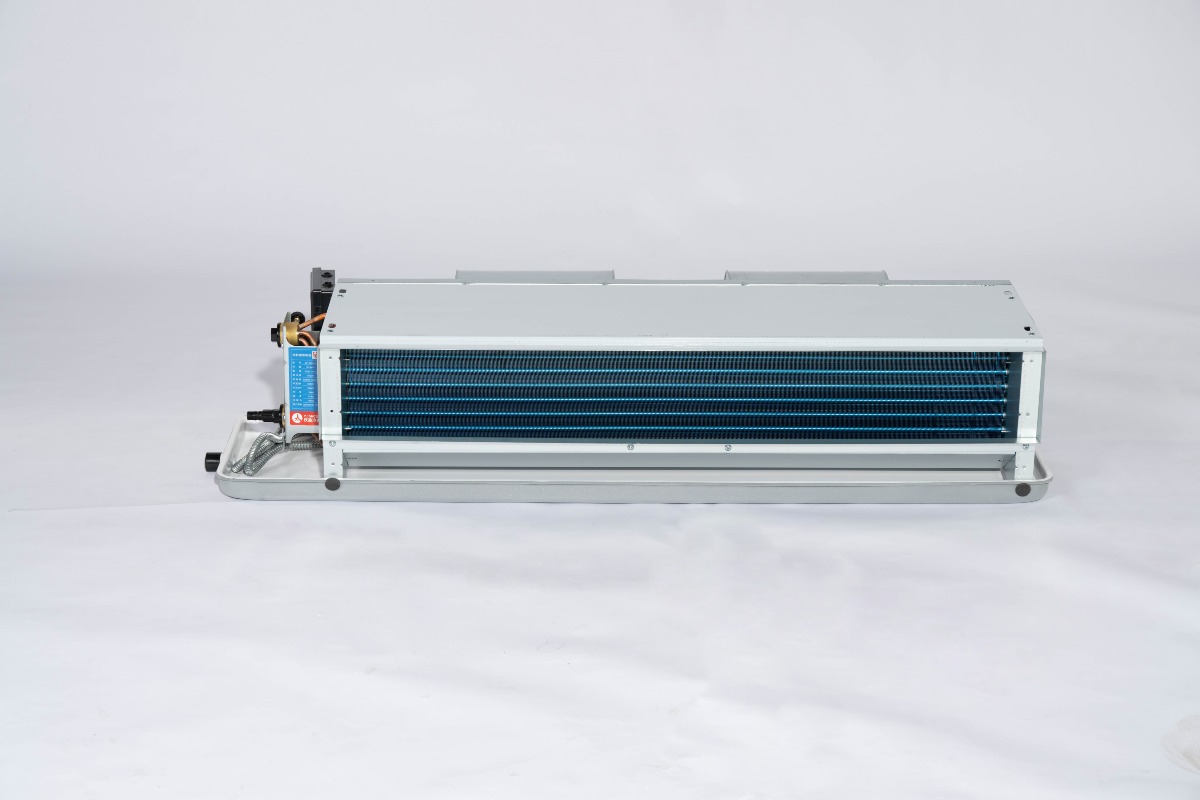

HFC-37 Fan Coil Unit (3.7kW)
3.7kW horizontal concealed fan coil unit. 680 m³/h airflow. 41 dB(A). Supplied with 200mm plenum, thermostat, remote control, and filter. 3-year warranty.
£949.00inc-VAT
£790.83 ex-VAT (20.00% VAT)
Coming soon
Description
What's included
HFC-37 fan coil unit

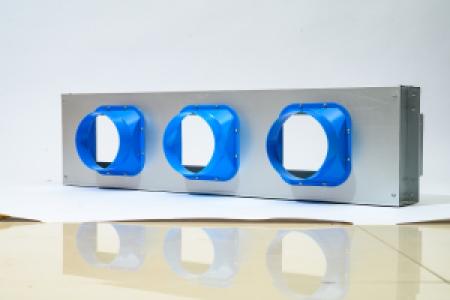

200mm plenum box
Thermostat
Remote control
Filter
Specifications
| Cooling capacity | 3,720 W |
| Heating capacity | 5,982 W |
| Air volume (H / M / L) | 680 / 510 / 340 m³/h |
| Power input | 72 W |
| Sound level | 41 dB(A) |
| Water flow rate | 638 L/h |
| Water pressure loss | ≤30 kPa |
| Coil rows | 3 |
| Coil working pressure | 1.2 MPa |
| Air outlet (W × H) | 650 × 130 mm |
| Return air box inlet | 650 × 175 mm |
| Power supply | 230V / 50Hz / 1-phase |
| Pipe connection | ¾″ BSP tapered |
| Dimensions (W × L × H) | 940 × 515 × 230 mm |
| Net weight | 19 kg |
Includes
| Component | Qty |
|---|---|
| Load-Compensated Controller | 1 |
| Fan Coil Controller Board | 1 |
No planning permission
Internal installation only. No external units. Ideal for listed buildings.
